Drip-PROOF 714 Coreless Motor Diameter 7mm 46000rpm DC 7.4V Mini Educational Robotic Kits

100 Pieces
MOQ
$0.69(100 - 999 Pieces) $0.68(>=1000 Pieces)
Price
Drip-PROOF 714 Coreless Motor Diameter 7mm 46000rpm DC 7.4V Mini Educational Robotic Kits
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: OTHER
Model Number: MD0714
Usage: DIVERSE
Type: Brush Motor
Torque: 3.5 G.cm
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: DRIP-PROOF
Speed(RPM): 46000
Continuous Current(A): 0.28
Efficiency: IE 2
Rated Voltage: 7.4 V
Operating Voltage: 1.5~7.4 V
Rotation Direction: CW/CCW
Stall Current: 1.72 A
Stall Torque: 24 G.cm
No Load Current: 48 MA
Starting Voltage: 0.8 V
Terminal Resistance: 4.3 ±5% Ω
Insulation Resistance: 10 MΩ
Certification: CE
Basic Infomation
Certification: CE
Model Number: MD0714
Payment & Shipping Terms
Product Description
Product Feature

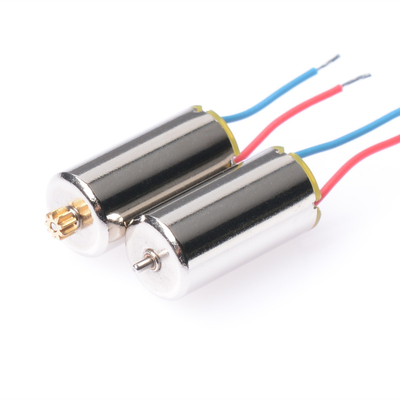

MD0714 coreless permanent magnet brush mini motor

Customization and OEM are acceptable
Rated Voltage
No Load Speed
No load Current
Stall Torque
Operating Voltage
7.4 V
46000 rpm
48 mA
3.5 g.cm
1.5~7.4 V
Certifications
Shipping & Packing
