10~12mm 3V brush coin drip proof type vibration motor use for mobile phone and sanitary protection equipment

10 Pieces
MOQ

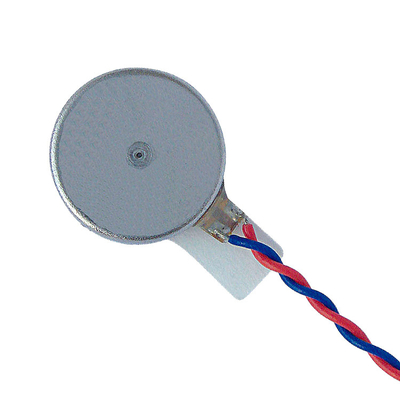

10~12mm 3V brush coin drip proof type vibration motor use for mobile phone and sanitary protection equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: 1020RFN
Type: Micro Motor
Certification: Ce, RoHS
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Drip-proof
Efficiency: IE 1
Usage: Mobile Phone, Health Protection Equipment, Etc.mobile Phone, Health Pr
Torque: *
Speed(RPM): 13500rpm
Continuous Current(A): 55mA
Output Power: *
Voltage(V): 3V
Function: Vibration
Speed: 13500rpm
Rated Voltage: DC 3V
Commutation Structure: Brush
Stall Current: 100mA
Diameter: 10mm
Height: 2.0~3.4mm
Style: 1020RFN
Motor Type: Flat Motor
Application: Mobile Phone,tabletPC,health Care
Basic Infomation
Certification: ce, RoHS
Model Number: 1020RFN
Payment & Shipping Terms
Packaging Details: 2000/carton; 2.8kg/carton; carton size:36.3*23.2*20.5cm
Supply Ability: 2000000 Piece/Pieces per Month
Product Description

10~12mm 3V brush coin type vibration motor use for Mobile phone and health protection equipment

CONSTAR MICROMOTOR
Brushless DC MotorDC Coreless MotorGearmotorSonic Motor

1,Application: mobile phone, health protection equipment, etc.

2,Operating Environment: -20~+70°c, 15~90%RH

3,Characteristics:

Series

Performance

Code

Dimension

(mm)

Voltage

(V)

Terminal resistance
(Ω)

Load

Starting voltage

Rated

Speed

(V)

Current

(mA)

Stall

Current

(mA)

1020RFN

31

φ10*2.0

3

30/58

Interior Eccentric Rotor

2.3

13500

60

95

1027RFN

31

φ10*2.7

3

35/66

Interior Eccentric Rotor

2.3

13500

55

90

1030RFN

31

φ10*3.0

3

38/71

Interior Eccentric Rotor

2.3

13500

55

80

1034RFN

31

φ10*3.4

3

32/63

Interior Eccentric Rotor

2.3

13500

70

95


4,Option: Lead wires, rubber pad.

5,Outline Drawing:

6,Photo:
