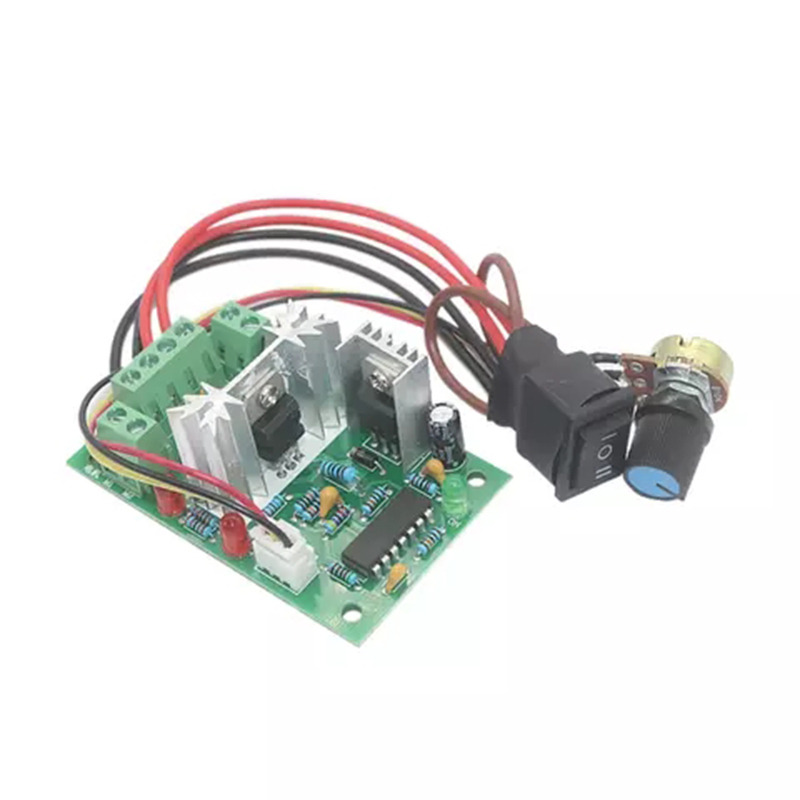

CCM2 10-30v 120w DC Control Pwm CCM2 Motor Speed ​​Controller

2 Pieces
MOQ
$5.98(2 - 99 Pieces) $4.46(100 - 999 Pieces) $4.28(>=1000 Pieces)
Price
CCM2 10-30v 120w DC Control Pwm CCM2 Motor Speed ​​Controller
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 3months-1year
Model Number: CCM2
Basic Infomation
Model Number: CCM2
Payment & Shipping Terms
Packaging Details: *shockproof foam packing *Suitable carton size *stretch film and pallet packing
Supply Ability: 200000 Piece/Pieces per Month
Product Description
Product Description
Model name
CCM2 Motor speed controller
Voltage
DC 10V-30V
Continuous current
3A
Max power
120W
Speed range
5%-95%
Pwm Frenquency
500HZ
Size
74CM*47CM*27CM
Features:
* Using PWM speed control technology, with high conversion efficiency, wide speed range, and stable performance.
* Adopting imported semiconductor chips, and had tested the voltage, current, function etc. So the circuit is stable and
reliable.
* Overload short circuit protection and the current no more than 30 seconds.
* Potentiometer is used to speed up the positive and negative switch for forward, reverse, and stop.

Specifications:
* The resistance value of a resistor: B10K
* Cable length: approx. 20cm/7.87''
* resistor mounting hole: 8mm
* Voltage: DC 10V-30V( wide range)
* Working voltage: 12v*3A=36W/24V*3A=72W Maximum up to 120W
* Rated current: 3A(Maximum continuous output current)
* Maximum current: 4A
* Modulation range: 5%-95%
* PWM frequency: 500HZ
* Module size: approx.74*47*28mm/2.91*1.85*1.10''
* Net weight: approx. 66g
* Gross weight: approx. 70g

Note:
* DC motor speed control input is DC, can not directly connect AC current (such as the 220V AC) otherwise it will burn.
* The positive and negative poles of the DC power supply can not be reversed, Otherwise the governor will damage.
* Motor can be divided into positive and negative, when the direction of operation and expectations are inconsistent, you can change the direction of the alignment.
* The potentiometer knob can change the output duty cycle of the governor, thus changing the speed of the motor.
* Please allow 1-3mm differs due to manual measurement.
