Home /Products/Brushed DC Motor/80ZY/92JX Totally Enclosed 24V Customized High Torque Tracker Low Speed ​​Solar DC Planetary Gear Motor

80ZY/92JX Totally Enclosed 24V Customized High Torque Tracker Low Speed ​​Solar DC Planetary Gear Motor

300 Pieces
MOQ
$129.99(300 - 499 Pieces) $118.99(500 - 999 Pieces) $112.99(>=1000 Pieces)
Price
80ZY/92JX Totally Enclosed 24V Customized High Torque Tracker Low Speed ​​Solar DC Planetary Gear Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: Customer's Needs
Model Number: 92JX1200K/80ZY
Usage: BOAT, Car, Electric Bicycle, FAN, Home Appliance, Automation
Type: GEAR MOTOR
Torque: Up To 800N.m
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Totally Enclosed
Speed(RPM): 3 ~ 900RPM
Continuous Current(A): 1~55A
Efficiency: TBD
Keywords: High Torque Solar Tracker DC Planetary Gear Motor
Motor Type: PM DC Brushed Motor
Color: Customer's Demands
Diameter: 80mm
Gearbox: Planetary Gearbox
Rated Voltage: 12 ~ 400V DC
Shaft Dimensions: Customer's Needs
Gears: Plastic/powder Metal/steel/brass
Option: Encoder/brake/connector
Noise: Low Noise Level
Certification: CCC, Ce, RoHS, ISO9001;Reach
Basic Infomation
Certification: CCC, ce, RoHS, ISO9001;Reach
Model Number: 92JX1200K/80ZY
Payment & Shipping Terms
Packaging Details: Cartons/Pallets/Containers
Supply Ability: 5000 Piece/Pieces per Month
Product Description
Product Description

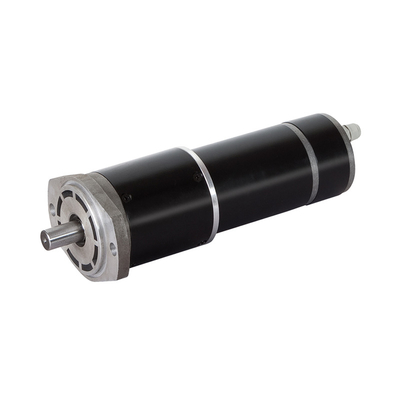

Customized High Torque Low Speed Solar Tracker DC Planetary Gear Motor
Model: 92JX/80ZY DC Planetary Geared Motor
1. 92mm OD planetary gearbox with rated torque up to 800N.m.
2. Lead wires either run out through the motor housing or the rear cover
3. DC motor size available (outer diameter ): 80mm, 83mm, 86mm, 90mm, 100mm, 110mm
Voltage: 12 ~ 400V DC
CE, Reach and RoHS approval
Optional components: magnetic/optical encoder; brake; connector
Customized shaft dimensions and technical specifications are available upon requested.
Multiple Ratios available
Smooth and Quiet Operation for continuous use!
High Torque
Extremely High Efficiency with only 3% loss per Train!
Customized dimensions, IP ratings, technical specifications are available upon requested.

Typical popular customized model technical drawings:
Customized Gear Motors for Typical Applications
Tarp Gear Motors
Slow Juicer Motors
Curtain & Window Motors
Robot Pool Cleaner Motors
Door & Gate Motors
Robot Lawn Mower Motors
Automatic Pool Cover Motors
Solar Tracking System Motors
Related Products
Certifications
Patents
FAQ

Q1: Are you a trading company or manufacturer?
A1: We are a professional OEM manufacturer.
Q2: What is your main product range?
A2: We manufacture both motors and gearboxes. Our main products are various AC/DC Planetary Gear Motors, AC/DC Right Angle Gear Motors, AC/DC Parallel Shaft Gear Motors, Small DC Motors, Compact AC Motors, Brushless DC Gear Motors, Motor Magnets, Gearboxes etc..
Q3: How about the MOQ of your motors?
A3: Customized testing samples are available before serial production.
Q4: What is the warranty period of your motors?
A4: We offer free maintenance in warranty period of one year.
Q5: Which shipping ways are available?
A5: DHL, UPS, FedEx, TNT are available for sample shipment. Sea/air/train shipments are available for serial production.
