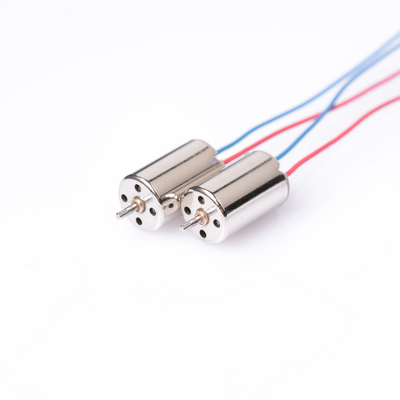

Drip-PROOF Mini Coreless Drone Motor 3.5V 8x12mm DC 24000rpm 812 Brush Motor

100 Pieces
MOQ
$0.83(100 - 999 Pieces) $0.82(>=1000 Pieces)
Price
Drip-PROOF Mini Coreless Drone Motor 3.5V 8x12mm DC 24000rpm 812 Brush Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: OTHER
Model Number: MD0812
Usage: DIVERSE
Type: Brush Motor
Torque: 1.8 G.cm
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: DRIP-PROOF
Speed(RPM): 24500
Continuous Current(A): 0.02
Efficiency: IE 2
Operating Voltage: 1.5~4.5 V
Starting Voltage: 0.8 V
Rotation Direction: CW/CCW
No Load Current: 53 MA
Stall Current: 730 MA
Stall Torque: 8.26 G.cm
Load Current: 390 MA
Terminal Resistance: 4.8 ±5% Ω
Torque Constant: 12 G.cm
Certification: CE
Basic Infomation
Certification: CE
Model Number: MD0812
Payment & Shipping Terms
Packaging Details: Packaging :Polystyrene / Hard paper box / water proof layer
Supply Ability: 20000 Piece/Pieces per Month
Product Description
Product information

MD0812 DC permanent magnet coreless miniature motor

Customization service and OEM are acceptable
Rated Voltage
Output At Max.Efficiency
No Load Current
No Load Speed
Weight
3.5 V
0.34 W
53 mA
24500 ± 12% Rpm
2.5 G
Shipping
Certifications
Company Profile
Wingfong Industry is a professional DC motor designer and manufacturer in inland China, our featured products are comprised of coreless brush motor,dual-shaft motor,vibration motor, drive motor,brushless motor etc. Which have been widely used in products from household, commercial and industrial,compare to those coastal competitors we have advantages of lower cost of labour,management and raw material which makes our products more competitive.
