Totally Enclosed Permanent Magnet High Torque Electric OD 63mm 12v Brushed DC Motor

1 Piece
MOQ
Totally Enclosed Permanent Magnet High Torque Electric OD 63mm 12v Brushed DC Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: LDO-63ZYT Series
Voltage(V): 12-24VDC
Output Power: 200w Max
Usage: Car, Electric Bicycle, Home Appliance, Cnc Control
Type: Micro Motor
Torque: 4Kg.cm Max, 0.1-0.4N.m
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Totally Enclosed
Speed(RPM): 5000rpm Max
Continuous Current(A): 5A Max
Efficiency: IE 2
Certification: CCC, Ce, RoHS
Shaft Shape: Accept Cutomized
Application: Power Tools
Color: Black
Function: Driving
Size: 63mm
Basic Infomation
Certification: CCC, ce, RoHS
Model Number: LDO-63ZYT series
Payment & Shipping Terms
Packaging Details: 1: export standard carton/pallet 2:customized packing conditions per your requirments
Supply Ability: 50000 Piece/Pieces per Month
Product Description

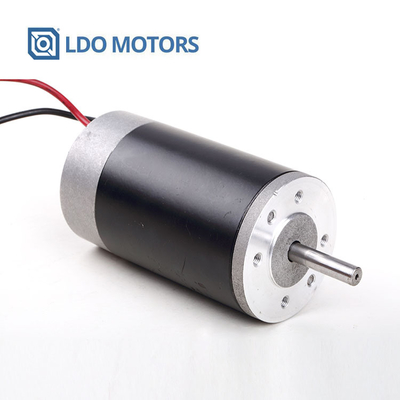

Permanent Magnet Brush DC Motor 63ZYT01A

Motor Specifications

Shaft materials 3Cr13, HRC 36~40

High quality ball bearing

Hard ferrite magnet, 2- poles

Protection class IP 50

Insulation class: F, operating temperature range:-40°C~+140°C

CE and ROHS certified

Options

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation

.Good pre/after sale service.

Any more detals, Fell free to contact with me.
