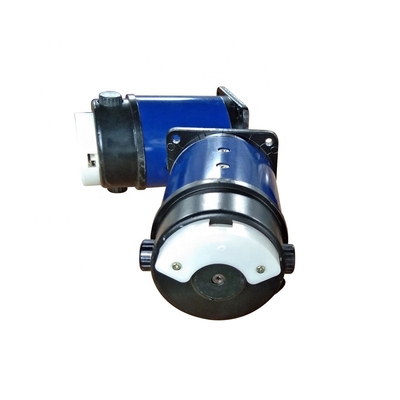

ZYT Industrial Permanent Magnet 220 Volt 110 Volt Brush DC Motor with 90mm Flange
The voltage, speed and power of the motor can be customized according to the requirements under the allowed circumstance of adoptable dimendion.
Lyt series permanent magnet dc motor adopts ferrite permanent magnet excitation system closed self-cooling type. It is a low power dc motor, which can be used as driving element in various devices.
| Model | Torque(mN.m) | Rated Speed(rpm) | Power(W) | Voltage(V) | Current(A) | Allowable Forward and Reverse Velocity Difference(rpm) |
| 90ZYT01 | 510 | 1500 | 80 | 110 | 1.1 | 100 |
| 90ZYT02 | 510 | 1500 | 80 | 220 | 0.55 | 100 |
| 90ZYT03 | 480 | 3000 | 150 | 110 | 2 | 200 |
| 90ZYT04 | 480 | 3000 | 150 | 220 | 1 | 200 |
| 90ZYT05 | 510 | 1500 | 80 | 24 | 5 | 100 |
| 90ZYT51 | 796 | 1500 | 125 | 110 | 1.6 | 100 |
| 90ZYT52 | 796 | 1500 | 125 | 220 | 0.8 | 100 |
| 90ZYT53 | 733 | 3000 | 230 | 110 | 2.8 | 200 |
| 90ZYT54 | 733 | 3000 | 230 | 220 | 1.5 | 200 |
| 90ZYT55 | 733 | 3000 | 230 | 24 | 13.5 | 200 |
Installing Type:A5&AA5
| Model | DC | D1 | h4 | L1 | L | D | E | L4 | F | G | d | D2 | E2 | L12 | F1 | G2 | d2 | Weight(kg) |
| - | - | - | - | - | h6 | - | - | +0.005/-0.015 | (h11) | (H11) | (h6) | - | - | +0.005/-0.015 | (h11) | (H11) | ||
| 90ZYT01~05 | 90 | 95 | 6.5 | 99..5 | 147 | 8 | 16 | 18 | 2 | 5.2 | 10 | 6 | 14 | 16 | 2 | 4.3 | 7 | 3.3 |
| 90ZYT51~55 | 124.5 | 172 | 4 |
Mark: When picking up the goods, please check the goods immediately for damage, missing or other problems.
Widely used in machine tools, textile machinery, medical machinery, conveying machinery, printing machinery, food machinery, packaging machinery, dipping machines, vending machines and other automated machinery equipment.
Click on the Images.
Q1. Can I have a sample order?
A: Yes, we can sell a sample, sit is pleased to receive a sample order to test and check the quality of products.
Q2. How long is the warranty?
A: The products come with a one-year warranty.
Q3. Can our logo be printed on this product?
A: Yes, please inform us formally before production and confirm the design firstly based on our sample.
