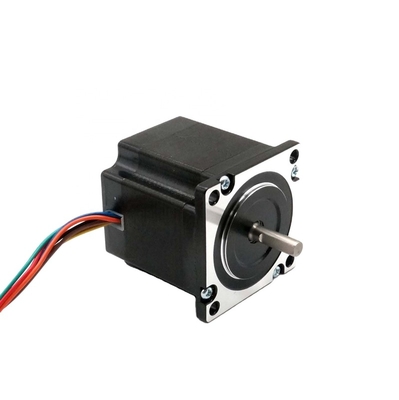

Home /Products/Brushed Servo Motor/- Good medical grade for 3d printer NEMA 23 stepper motor base type - 2 phase industrial hybrid stepper motor

- Good medical grade for 3d printer NEMA 23 stepper motor base type - 2 phase industrial hybrid stepper motor

1 Piece
MOQ
$14.00(1 - 9 Pieces) $11.20(10 - 99 Pieces) $10.20(>=100 Pieces)
Price
- Good medical grade for 3d printer NEMA 23 stepper motor base type - 2 phase industrial hybrid stepper motor
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1year
Model Number: PST57H242-4P10
Phase: 2
Type: Hybrid
Current / Phase: 1A
Product Model: PST57H242-4P10
Inductance: 8.9mH/phase
Torque: 0.6N.m
Motor Length: 42.51mm
Leads(No): 4
Connector: Connector
Usage: Industrial - Medical
Certification: Ce, ISO, RoHS
Basic Infomation
Certification: ce, ISO, RoHS
Model Number: PST57H242-4P10, PST57H242-4P10
Payment & Shipping Terms
Packaging Details: Inner packing foam filling, outer packing carton sealing film,carton size 39.5*24.5*18cm
Supply Ability: 250000 Piece/Pieces per Month
Product Description
Product Description
1. Accurate position Control
The angular displacement of the stepping motor can be precise controlled by the number of electrical pulses.Angle accuracy can be controlled within ±0.09°without any feedback devices.
2. Accurate Speed Control
The rotational speed of the stepping motor can be precisely controlled ,By controlling the frequency of the electric pulse.
3. Forward/Reverse Rotation,Pause and Hold
The forward /reverse rotation of the stepping motor can be controlled by the input sequence of the controlled electric pulses.In the case of the a stepping motor lock(the motor winding is energized,there is no external electric pulse command),the stepping motor can still maintain a certain torque output.
4. Longer Life
Stepping motor is a mechanical structure,which does not need be changed by electric brush or Hall sensor,thus reducing the probability and increasing the motor life.Stepping motor life usually determined by the life of the bearing.
Specification
Model
PST57H242-4P10
PST57H242-4P20
PST57H242-4P30
Holding Torque
0.6N.m
0.6N.m
0.6N.m
Related Current
1A/Phase
2A/Phase
3A/Phase
Resistance
4.2Ω /Phase
1.2Ω /Phase
0.51Ω /Phase
Weight
0.46kgs
0.46kgs
0.46kgs
Inertia
140g.cm2
140kgs
140kgs
Connection
P
P
P
Length
42.5mm
42.5mm
42.5mm
Inductance
8.9MH/Phase
2.1MH/Phase
1MH/Phase
Outline(Unit:mm)
Quality control process


1.Incoming inspection: The inspection shall be conducted according to the Requirements of the Incoming Inspection Specification or the product drawing
2.Monitoring and measurement of production process (self-inspection - inspection - batch production)
3.Final inspection and test
4.All inspectors must be trained and then put on duty
Applications:
Used for robots stepper motor
Electronic automatic equipment stepping motor
Medical instrument stepping motor
Advertising instrument stepper motor
Lighting& audio equipment stepper motor
Printer stepper motor, textile machinery stepper motor
Cnc router stepper motor
Company Profile
With sound and perfect motor manufacturing chain,Prostepper has also been equipped with mature production process and inspection
equipment,as also a number of high-precision punching machines.In addition,it can also realize complete automatic processing of
parts and components with automatic motor assembly to realize on-line testing of motor performance .
In this way,the company can ensure that each manufactured motor will absolutely meet customer requirements with reliable quality assurance system.
Changzhou Prostepper Co.,Ltd.established as a high-tech company in 2004,engaging in developing designing and producing professional stepping motor and DC brushless motor.Prostepper posses an annual production of over 1.5 million motors.
Prostepper has a large customers group across over the world,with products being exporting to over 10 countries,including the United States,Germany,Switzerland,Italy,Korea and JAPAN,etc.Our products are widely used in various industries,such as textile machinery,medical,robotics,packaging,printing;communications,office automation,semiconductor industry and different industrial automation equipment.
We are eager to achieve the value for our customer products as well as create and win the future strategic opportunities with them together.

Supply Ability:250000pcs/ per month
Packing & Delivery
HS CODE: 8501109990
Port:Shanghai
Lead Time :7-25days
Selling Units: Single item
Single package size: 38.5cm*24cm*23cm 40PCS/Carton
FAQ
Q1: What about your warranty?
A: We guarantee is one year . for sea order .
Q2: Do you have any certificates?
A: Yes, we have. All the motors have been approved by CE and RoHS.
Q3:What's the delivery time ?
A: Except special order. For samples usually 10-14 working days . for batch order . usually 20-25days.
4.Do you receive customization?
We accept customization. We will try our best to meet customer's requirements.
