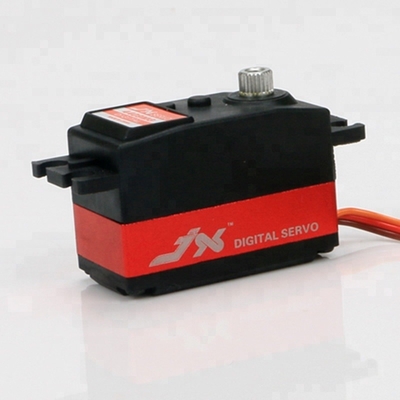

JX Servo PDI-4409MG10kg high torque fast speed 0.11s rc car servo unmanned ship servo
The steering gear is designed for 1/10 Touring and drift cars, suitable for the mainstream 1/10 flat running, drift models, 94123, 94122, Sakura D4,Henglong models completely match, space saving, quick response, low price,high performance-price ratio.
-- High performance standard digital servo
-- High-precision metal gears Made In Taiwai
-- Aluminium Middle Hull Structure
-- High Quality Brush Motor
-- Dual Ball Bearings
Dead band:2μs
Working frequence:1520μs / 330hz
Motor:high quality core motor
Operating Speed (4.8V):0.13 sec/60°
Operating Speed (6V): 0.11 sec/60°
Stall Torque (4.8V):7.8 kg.cm
Stall Torque (6V):9.2 kg.cm
Dimensions:40.5X20.3X28mm
Weight:44.5 g
Connector Wire Length:JR 265 mm
Bearing:2BB
| Item No | PDI-4409MG |
| Dead band | 2μs |
| Control System | +Pulse Width Control |
| Working frequence | 1520μs / 330hz |
| Operating Voltage | DC4.8-6 V |
| Operating Temperature Range | -10 to + 60°C |
| Operating Speed (4.8V) | 0.13 sec/60° |
| Operating Speed (6.0V) | 0.11 sec/60° |
| Stall Torque (4.8V) | 7.8kg.cm |
| Stall Torque (6.0V) | 9.2kg.cm |
| Dimensions | 40.5X20.3X28mm |
| Weight | 44.5g |
| Connector Wire Length | JR/Futaba 265 mm |
| Bearing | 2BB |
