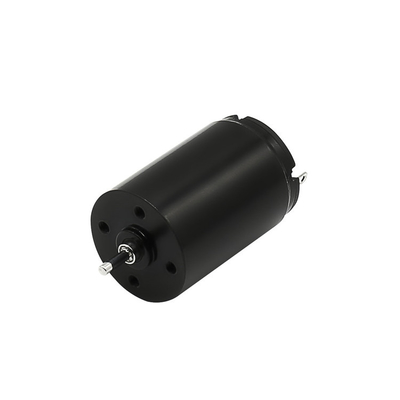

XHDC17MM Motor Product Specification
Basic parameter:
XHDC-17MM coreless motor has stable performance, lasting power, ultra-quiet, high torque and high qualification rate.We adopt advanced and reasonable production technology.
Selected and customized high temperature and wear resistant materials to make product components;High degree of production automation, ensure each motor performance stable
output.This product series developed by our company at present.All the technical characteristics are at the same level as those of Switzerland's Maxon and Germany's Faulhaber.
1. Advantages of coreless motor
The hollow cup motor is a dc permanent magnet and servo micromotor. The main difference between the hollow cup motor and ordinary motor is the adoption of an iron core
rotor/stator, also known as the hollow cup rotor/stator.
The hollow cup motor has the following advantages:
• large energy conversion efficiency (a measure of its energy-saving characteristics) : its efficiency is above 70%, and some products can reach above 90% (ordinary core motors are between 15-50%);
• quick activation and braking, and extremely fast response: mechanical time constant is less than 28 milliseconds, and some products can reach less than 10 milliseconds.
The speed adjustment of the speed adjustment is sensitive in the recommended running area.
• reliable operation stability: with strong adaptive ability, its speed fluctuation can be controlled within 2%;
• less electromagnetic interference: quality brush, commutator structure, small commutator spark, can avoid additional anti-interference devices;
• high energy density: compared with the same power core motor, its weight and volume are reduced by 1/3 to 1/2;The corresponding parameters, such as rotational speed - voltage,
rotational speed - torque, torque - current, etc. all present standard lines.
2.Features of hollow cup motor:
• no iron core, unique precision line design, small breath
• performance rare earth magnets, power density
• torque, efficiency • no torque ripple
• excellent volume power ratio and light weight
• small vibration to achieve acceleration performance
• smooth operation and quick response
Low noise,
• no alveolar effect
• low starting torque and wide speed adjustment range
* good heat dissipation, low heat and low temperature rise
