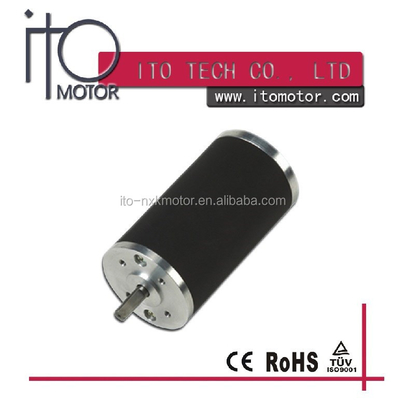

12V/24V/36V 64mm 3000RPM Permanent Magnet DC Pump Motor :
.Encoder possible
·Internal capacitors or varister.
·DC Motor Voltage and speed adjustment by winding change
·Modification of shaft length of motor
·Modification of shaft configuration (flat, hole, knurling, rear shaft etc.)
·Assembly of gears, vibrators, pulley, etc.
·Ball bearing available.
· Replace of Dunker Motor, MCG Motor, EBM Motor, Buehler Motor, Ametek motor.
Spec. of 12V/24V/36V 64mm 3000RPM Permanent Magnet DC Pump Motor
| Model | Rated Voltage | No-load Speed | No-load Current | Rated Torque | Rated Speed | Rated Current | Rated Output | Back EMF | Rotor Inertia | Motor Length | Weight |
| V | r.p.m. | A | N.cm | r.p.m. | A | W | V/Krpm | g.cm² | mm | Kg | |
| IPM-65ZYT01 | 12 | 3600 | 0.6 | 13.7 | 3100 | 5.2 | 44.5 | 3.3 | 0.20 | 95 | 1.2 |
| IPM-65ZYT02 | 24 | 3600 | 0.36 | 14 | 3200 | 2.7 | 46.9 | 6.6 | 0.20 | 95 | 1.2 |
| IPM-65ZYT03 | 12 | 3500 | 0.8 | 24 | 3000 | 8.7 | 75 | 3.4 | 0.37 | 125 | 1.7 |
| IPM-65ZYT04 | 24 | 3650 | 0.4 | 27 | 3350 | 5.50 | 95 | 6.5 | 0.37 | 125 | 1.7 |
Dimensions of 12V/24V/36V 64mm 3000RPM Permanent Magnet DC Pump Motor
Other Views of 12V/24V/36V 64mm 3000RPM Permanent Magnet DC Pump Motor
Production line of permanent magnet 12v dc Motor
Certificate of permanent magnet 12v dc Motor
Welcome to customizate different Motor from ITO motor.
