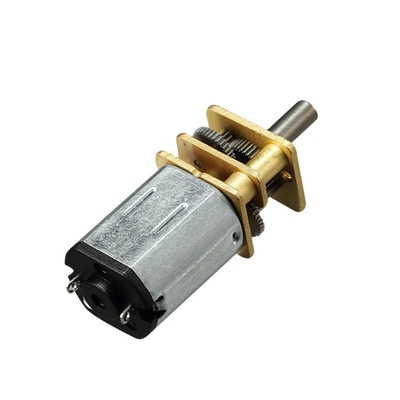

Explosion Proof N20 DC Brushed Motor Used In Medical Micro System Or DC Gear Motor

3 Pieces
MOQ
$4.00(3 - 499 Pieces) $3.20(500 - 999 Pieces) $3.00(1000 - 29999 Pieces) $2.65(>=30000 Pieces)
Price
Explosion Proof N20 DC Brushed Motor Used In Medical Micro System Or DC Gear Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 3months-1year
Model Number: Dc Gear Motor GM12-N20VA
Usage: BOAT, Car, Electric Bicycle, Home Appliance, Industrial Equipment
Type: GEAR MOTOR
Torque: 13 G.cm
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Explosion-proof
Speed(RPM): 12000-12500r/min
Continuous Current(A): 0.25-1.2A
Efficiency: 65%
Size: 12*24 Mm
Product Name: Dc Gear Motor GM12-N20VA
No-load Speed: 38-1550 R/min
No-load Current: 15-60 MA
Rated Torque: 0.015-0.5 Kg.cm
Output Power: 0.31-0.35 W
Stall Torque: 13 G.cm
Stall Current: 0.25-1.2 A
Rated Voltage: 2.5-12V DC
Application: Automatic Product
Certification: Ce, RoHS, ISO9001
Basic Infomation
Certification: ce, RoHS, ISO9001
Model Number: dc gear motor GM12-N20VA
Payment & Shipping Terms
Product Description
Product Description

N20 dc brushed motor used in medical system or dc micro gear motor


Main Features

12*10 mm gearbox plus N20 &N30 permanent magnet dc motor
Small size dc gear motor with low speed and big torque
12mm gear motor provide 0.1Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
DC Gear motors can match encoder, 3ppr
Reduction ratio:3、5、10、20、30、50、63、100、150、210、250、298、380、1000

Model:Motor GM12-N20VA

TFF-N20VA-13110
Rated voltage:2.4V DC
Rated speed:12000r/min
Output power:0.31W
No-load speed:14800r/min
Rated torque:2.5g.cm
Stall torque:13g/cm
No-load current:60mA
Rated current:200mA
Stall current:1.20A
TFF-N20VA-09220
Rated voltage:5V DC
Rated speed:12000r/min
Output power:0.31W
No-load speed:14800r/min
Rated torque:2.5g.cm
Stall torque:13g/cm
No-load current:30mA
Rated current:120mA
Stall current:0.52A

TFF-N20VA-05430
Rated voltage:12V DC
Rated speed:12500r/min
Output power:0.35W
No-load speed:16000r/min
Rated torque:3.0g.cm
Stall torque:13g/cm
No-load current:15mA
Rated current:60mA
Stall current:0.25A
GM12-N20VA-13110-xxx
Reduction ratio
10
30
50
100
150
210
250
298
380
Length mm
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
No-load speed rpm
1450
470
285
145
96
69
58
50
38
Rated speed rpm
1200
400
240
120
80
57
48
40
31
Rated torque kg.cm
0.015
0.05
0.07
0.15
0.22
0.31
0.37
0.45
0.5
Max.momentary tolerance torque kg.cm
0.08
0.23
0.4
0.8
1.1
1.5
1.6
1.9
2.5
GM12-N20VA-09220-xxx
Reduction ratio
10
30
50
100
150
210
250
298
380
Length mm
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
No-load speed rpm
1450
470
285
145
96
69
58
50
38
Rated speed rpm
1200
400
240
120
80
57
48
40
31
Rated torque kg.cm
0.015
0.05
0.07
0.15
0.22
0.31
0.37
0.45
0.5
Max.momentary tolerance torque kg.cm
0.08
0.23
0.4
0.8
1.1
1.5
1.6
1.9
2.5
GM12-N20VA-05430-xxx
Reduction ratio
10
30
50
100
150
210
250
298
380
Length mm
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
No-load speed rpm
1550
530
310
160
110
78
60
55
43
Rated speed rpm
1100
400
250
125
83
60
50
42
33
Rated torque kg.cm
0.02
0.05
0.08
0.18
0.27
0.37
0.45
0.5
0.5
Max.momentary tolerance torque kg.cm
0.1
0.2
0.4
0.8
1.1
1.5
1.6
1.9
2.5

Product Application.

Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Others application
Business Machines
Vending Machines
Printers
ATM
Copiers and Scanners
Camera and Optical
Video
Cameras
Projectors

Lawn and Garden
Lawn Mowers
Snow Blowers
Trimmers
Leaf Blowers

Certifications.

ISO9001, SGS, National high-tech enterprises, etc.

Our Company

TT Motor (HK) Industrial Co., Ltd. has been specializing in micro motors, gear motors and their respective parts since 2000.
Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide.
By leveraging our hard-won reputation for honesty, dependability and quality, TT aims to continue as a pioneer in the sales
overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us.
We look forward to being able to work together with you in the near future.

Our Customers

NIKE, FLEXTRONICS, STANLEY, etc.
