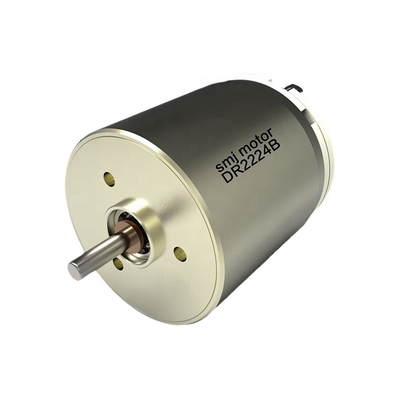

Totally Enclosed High Quality 12V DC Motor Brushed SMJ DC Motor

1 Piece
MOQ
$25.00(1 - 499 Pieces) $16.00(>=500 Pieces)
Price
Totally Enclosed High Quality 12V DC Motor Brushed SMJ DC Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 3months-1year
Model Number: DR2224B
Usage: Industry Appliance
Type: Brush Motor
Torque: 5mNm
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Totally Enclosed
Speed(RPM): 10900rpm
Continuous Current(A): 0.17-0.98A
Efficiency: IE 1
Nominal Torque: 5mNm
Stall Torque: 14mNm
Diameter: 22mm
Length: 24.2mm
Motor Type: Ironless
Brush Type: Graphite Brushes
Certification: Ce
Basic Infomation
Certification: ce
Model Number: DR2224B
Payment & Shipping Terms
Packaging Details: Maxon replaced motor are packed with foam and paper carton, then pallet
Supply Ability: 50000 Piece/Pieces per Year
Product Description
Product Description

12V High  quality DC motor Brushed DC motor from SMJ

The motor can replace Maxon motor and please send me an inquiry for detailed info.



DC brushed motor (coreless) application:



1. The healthcare industry: They can be used to power dialysis pumps, CPAP machines, surgery tools, and ambulatory infusion pumps.
2. Robotics: Engineers install them in positioning systems and small wheel systems in robot projects.
3. Automation & Actuators: These motors can be used in precise automation systems and high accuracy actuators.
4. Laboratories: Engineers can use it to drive small but effective equipment such as pumps, stirrers, and centrifuges.
5. Office equipment: Thanks to their small size, effective motors can be installed in printers, card readers, and other office equipment, without the need to make the products bigger.
6. Audio/visual equipment: Pan and tilt drives for cameras & audio turntables can be fitted with effective motors that work quietly.







Gear box P22H (optional)
