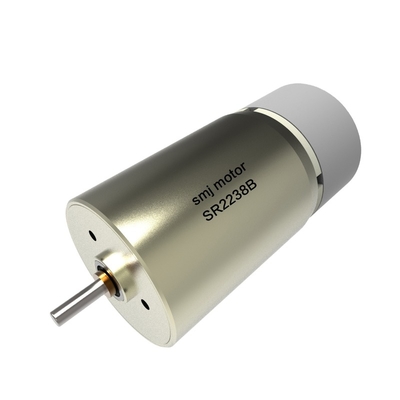

Totally Enclosed Japan High Torque 24v DC Servo Motor For Sale

1 Piece
MOQ
Totally Enclosed Japan High Torque 24v DC Servo Motor For Sale
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 3months-1year
Model Number: SR2238B
Usage: Electric Bicycle, Robots,AGVS,Medical Machines
Type: Servo Motor
Torque: 5mNm
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Totally Enclosed
Speed(RPM): 4650-8840rpm
Continuous Current(A): 0.14-0.65A
Efficiency: IE 1
Brush Type: Graphite Brushes
Norminal Torque: 5mNm
Stall Torque: 11.9-28.6mNm
Diameter: 22mm
Length: 37.8mm
Certification: Ce
Basic Infomation
Certification: ce
Model Number: SR2238B
Payment & Shipping Terms
Packaging Details: DC servo motor are packed with foam and paper carton, then pallet
Product Description
Products Description
Motor model
SR223806B
SR223812B
SR223818B
SR223824B
SR223836B
SR223848B
Nominal voltage
V
V
6
12
18
24
36
48
No load speed
rpm
Wnl
7000
11000
11000
11500
9650
9130
No load current
mA
InI
36
26
16
20
12
10
Nominal speed
rpm
Wc
4650
7680
7300
8840
6500
5920
Nominal torque
mNm
Tc
4.05
6.7
7
6.9
7
6.9
Nominal current
A
Ic
0.5
0.65
0.45
0.35
0.2
0.14
Output power
W
Pc
2
5.39
5.36
6.39
4.76
4.28
Stall torque
mNm
Tmax
11.9
21.7
20.4
28.6
21.9
20
Stall current
A
Imax
1.46
2.11
1.32
1.45
0.63
0.41
Max. efficiency
%
ηmax
65
72
72
73
72
71
Terminal resistance
Ω
Rt
4.1
5.7
13.6
16.5
57.1
117
Torque constant
mNm / A
Kt
8.1
10.3
15.4
19.7
34.72
48.74
Speed constant
rpm / V
Kn
1179
925
618
486
275
196
Speed torque gradient
rpm / mNm
Δn / ΔT
590
494
525
385
441
457
Terminal inductance
mH
L
0.239
0.376
0.866
1.05
3.55
7
Rotor inertia
gcm2
J
4.1
4.3
4.16
4.17
4.06
4
More Products
Product Line
Our Company
Certification
Packaging&Shipping
Application
Recommend Products
Our dc brushed servo motors can be alternative of Maxon motors. For more products, pls click this line:
https://shmindong.en.alibaba.com/productgrouplist-828953483/Standard_SR_series.html
